3821630

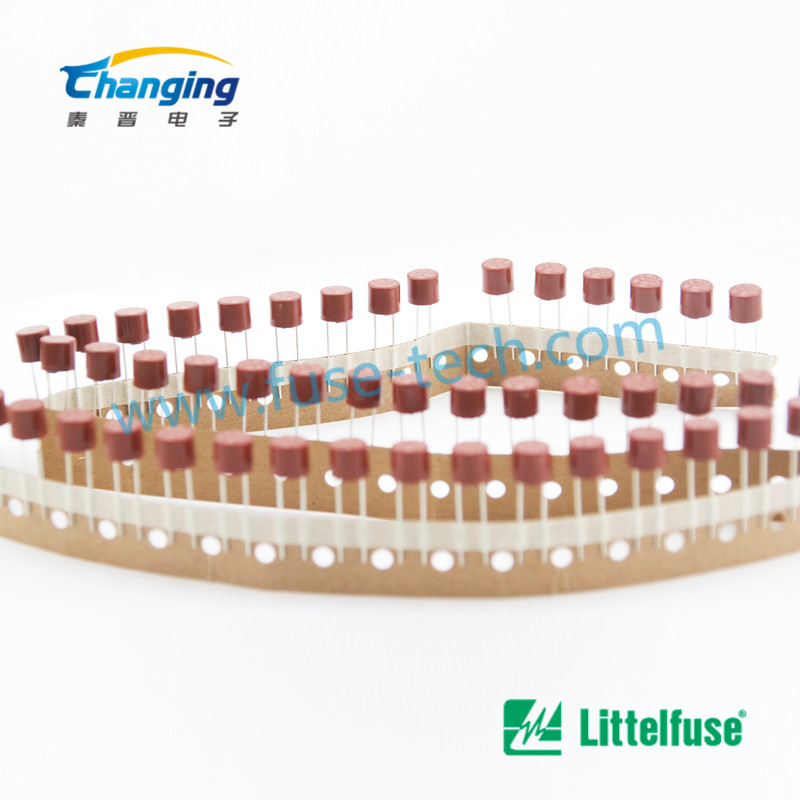

力特3821630微型保險絲無鉛 100A安培分?jǐn)嗄芰?降低對PCB板的空間要求 可直接軟焊或插入 獲國際認證 低內阻 防電擊外殼 抗振 無鹵素
| 型號 | AmpCode |
Rated Current |
Voltage Rating |
Bearking Capacity |
VoltageDrop 1.0×1N max.(mV) |
PowerDissipation 1.5×1Nmax.(mW) |
MeitingIntegral 10×1Nmin.（A2s) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 3822100 | 2100 | 10.00A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 57 | 1600 | 260 |
 |
| 3821800 | 1800 | 8.00A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 63 | 1600 | 180 |
|
| 3821630 | 1630 | 6.30A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 65 | 1400 | 105 |
|
| 3821500 | 1500 | 5.00A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 65 | 1250 | 90 |
|
| 3821250 | 1250 | 2.50A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 80 | 750 | 22 |
|
| 3821160 | 1160 | 1.60A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 90 | 490 | 9.0 |
|
| 3821125 | 1125 | 1.25A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 95 | 465 | 4.5 |
|
| 3821400 | 1400 | 4.00A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 70 | 1200 | 58 |
|
| 3821315 | 1315 | 3.15A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 75 | 900 | 32 |
|
| 3821200 | 1200 | 2.00A | 250V | 100A/250VAC 50-60 Hz cos=1.0 | 85 | 670 | 12 |
|
| 3821100 | 1100 | 1.00A | 250V | 100A/250VAC50-60Hz cos1.0 | 100 | 400 | 3 |
|
