JFC2410-2150FS

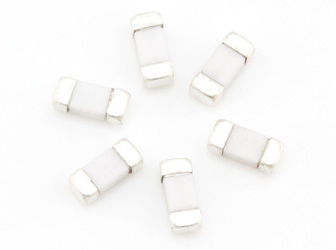

JFC2410-2150FS 一次性熔斷保險絲貼片式、體積小，容易焊接，全新的結構和工藝，能有效改善產品常見的端帽松動和性能離散；無鉛無鹵素，符合環保要求。主要應用于固態照明、AC/DC電源、電子鎮流器、小家電設備等交流應用場合。
| Part NO. | Rated Current(A) | Max Voltage Rating(V) | Interrupting Rating | Nominal Cold Resistance(Ohms) | Nominal Melting I2t(A2sec) | Data Sheet |
|---|---|---|---|---|---|---|
| JFC2410-2250FS | 25.0 | 72V | 500A@72V | 0.0017 | 550 |
 |
| JFC2410-2200FS | 20.0 | 72V | 500A@72V | 0.0023 | 410 |
|
| JFC2410-2300FS | 30.0 | 72V | 500A@72V | 0.0012 | 900 |
|
| JFC2410-2150FS | 15.0 | 125V | 50A@250V | 0.0037 | 97.82 |
|
| JFC2410-2120FS | 12.0 | 125V | 50A@250V | 0.0049 | 47.97 |
|
| JFC2410-2100FS | 10.0 | 250V | 50A@250V | 0.0056 | 26.46 |
|
| JFC2410-1800FS | 8.00 | 250V | 50A@250V | 0.0077 | 20.23 |
|
| JFC2410-1700FS | 7.00 | 250V | 50A@250V | 0.0090 | 10.32 |
|
| JFC2410-1630FS | 6.30 | 250V | 50A@250V | 0.0096 | 9.170 |
|
| JFC2410-1600FS | 6.00 | 250V | 50A@250V | 0.0108 | 8.670 |
|
| JFC2410-1500FS | 5.00 | 250V | 50A@250V | 0.0125 | 5.566 |
|
| JFC2410-1400FS | 4.00 | 250V | 50A@250V | 0.0160 | 3.152 |
|
| JFC2410-1350FS | 3.50 | 250V | 50A@250V | 0.0200 | 2.469 |
|
| JFC2410-1300FS | 3.00 | 250V | 50A@250V | 0.0227 | 1.650 |
|
| JFC2410-1250FS | 2.50 | 250V | 50A@250V | 0.0286 | 1.029 |
|
| JFC2410-1200FS | 2.00 | 250V | 50A@250V | 0.0367 | 0.530 |
|
| JFC2410-0750FS | 0.75 | 250V | 50A@250V | 0.2450 | 0.185 |
|
| JFC2410-0500FS | 0.50 | 250V | 50A@250V | 0.4200 | 0.0795 |
|
| JFC2410-0100FS | 0.10 | 250V | 50A@250V | 3.1000 | 0.00138 |
|
| JFC2410-1150FS | 1.50 | 250V | 50A@250V | 0.0930 | 3.65 |
|
| JFC2410-1100FS | 1.00 | 250V | 50A@250V | 0.1530 | 0.0459 |
|
